Vacuum Motor 2S - 24Volts

Warehouse item - order online for delivery, or collect from our Montana store once notified.

Product overview

The Vacuum Motor 2S - 24Volts is a replacement vacuum-system component intended for compatible professional cleaning equipment.

Technical specifications

Voltage	24 V
Power	450 W

Product details, use and care

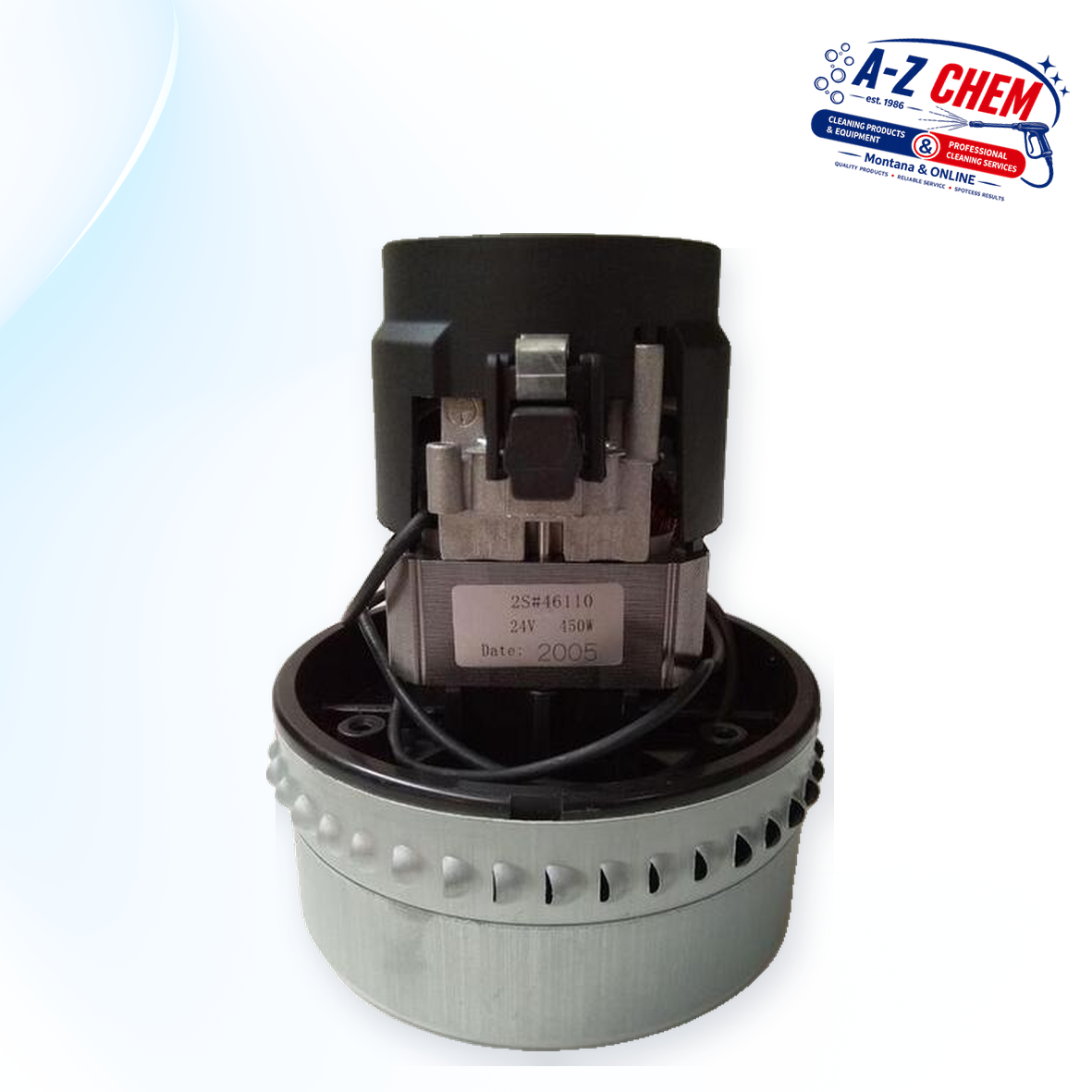

The 46110 is a vacuum motor used for battery operated applications. It operates at 24V and draws 450W of power.

A-Z Chem stocks the motor brushes for this motor. We can maintain this product with the aforementioned brushes, but if the motor has burnt then A-Z Chem would not be able to facilitate any further repairs.

This product comes with a 3 month warranty, only if the motor was put into a machine by A-Z Chem staff. If the motor is bought and A-Z Chem was not responsible for the repair, then a warranty cannot be issued for the motor.

Maintenance of Motor

The carbon brush of the motor must be checked by professional every 3 months.

Malfunction of Motor

1. The dust bag is too dirty / Clean the dust bag drastically.
2. There are too much waste in the dust bag or in the machine / take out all the waste.
3. The suction hose or the tank connector was jammed / Clear out the jam

Warranty and support

This product carries a 6-month replacement warranty, subject to assessment, correct operation and the warranty conditions below. Warranty service is coordinated through A-Z Chem and handled under the authorised warehouse warranty process.

Warranty conditions

• Vacuum motors must be replaced by authorised technical staff in the case of a repair
• Motors must not have any dust or particles on or inside them
• Brushes (2) at the side of the motor must not show any burn marks
• Plates at the bottom of the motor must not show any movement or shifting on the body
• The motor must not indicate that any water have reached the motor
• The motor must not indicate that it had overheated at all
• The outer body of the motor must be in a new condition showing no physical damage
• Warranty is only valid if the motors were installed by authorised technical staff

Ordering, delivery and collection

Online order item - delivery or collection from A-Z Chem Montana. This product is not normally held at our Montana store. After your online order and payment are received, we will collect the item from our warehouse. You can have the product delivered, or collect it from our Montana store once we notify you that it is ready. Please wait for the ready-for-collection notification before visiting the store.

Compatibility note: Confirm the model, connection size, voltage and specification before ordering replacement parts. Contact A-Z Chem if you need assistance.
