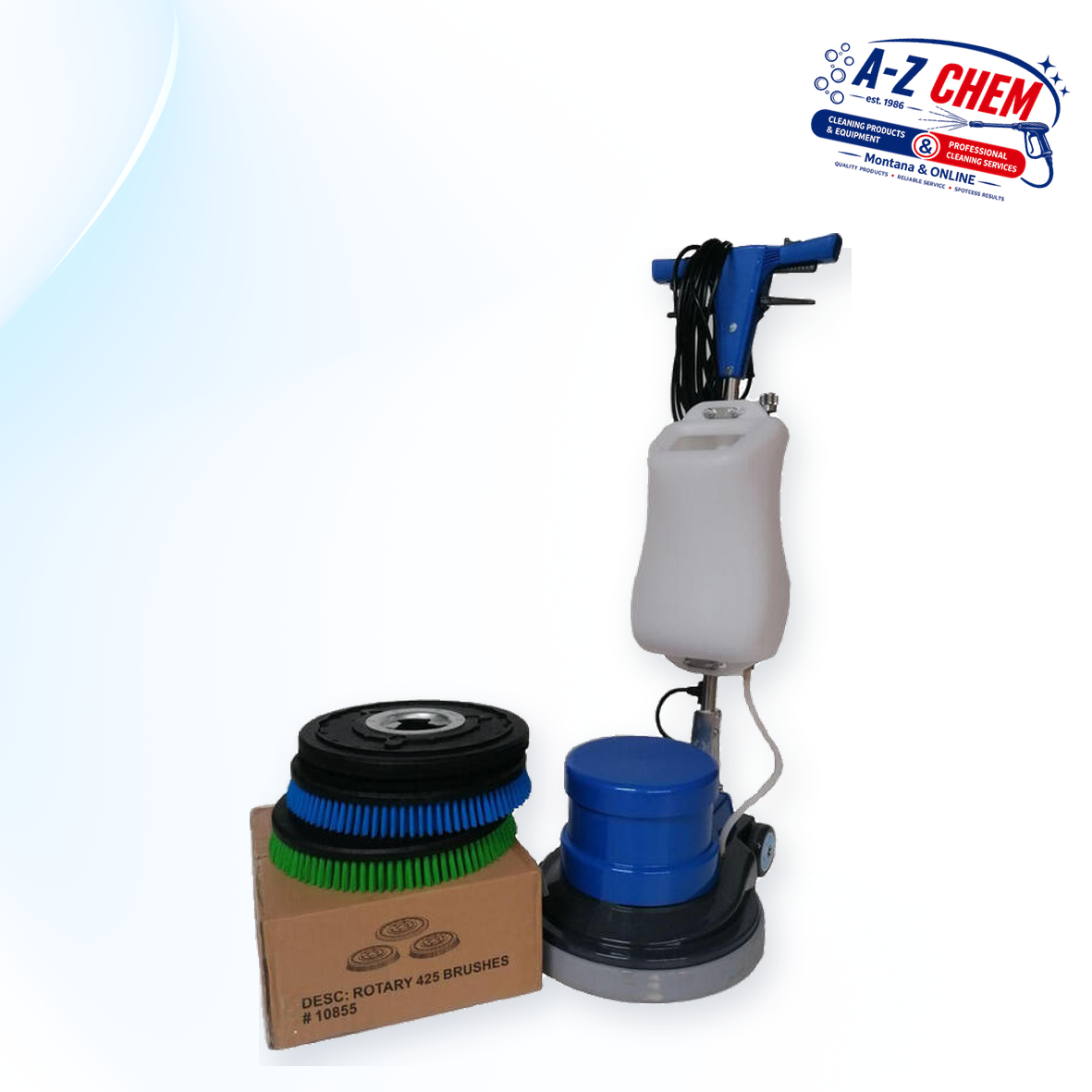

Rotary 425 with Pad Drive, 2 Brushes and Tank

Warehouse item - order online for delivery, or collect from our Montana store once notified.

Product overview

The Rotary 425 with Pad Drive, 2 Brushes and Tank is a professional cleaning machine selected for dependable commercial and industrial use.

Technical specifications

Voltage	220-240 V
Frequency	50 Hz
Power	1200 W
Brush Speed	154 RPM
Motor Speed	1400 RPM
Cable Length	12 m
Base Diameter	430 mm
Max. Tank Capacity	16 â„“

Product details, use and care

The Rotary 425 with paddrive, 2 brushes and tank, is a floor-scrubbing machine that comes with a paddrive for floor pads, two brushes for floor- and carpet-brushing applications as well as a water tank that is attached to the machine for feeding water to the surface being scrubbed, if needed.

The machine in itself is very popular. It is used for scrubbing carpets, cleaning and buffing floors, etc.

One application is for wooden floors, using this machine in conjunction with sanding-paper pads to sand the upper layer of a wooden surface. A-Z Chem sells these pads as well.

A-Z Chem stocks parts and spares for this product and have the facilities to repair.

This product comes with a 6 month warranty, limited to the repair of the product and not the replacement thereof. Usage of the machine will also be taken into account.

Important Notice

Please read the following carefully.A-Z Chem takes no responsibility to any damage due to machine not operated according to this manual.
A-Z Chem takes no responsibility to any damage due to modifications, disassemble or due to other uses not prescribed in this manual.
This manual provides important instructions on product operation.
A-Z Chem reserves the right to update and revise it.
If there are some difference, the actual product shall prevail.

Operation Procedure

1. Mount on brush and pad: hold the operation wand upright and tilt burnisher to load the proper brush or cleaning pad counter-clockwise unto the motor clip.
2. Mount water tank on the wand: place the burnisher on the ground horizontally and keep wand vertical. Loose upper and lower clips of water tank and put the tank onto the wand, adjust the position of the tank on the wand. Tighten the water tank (screws have to be tightened, otherwise during operation, fallen tank might break the cable or lead to unstable tank.) then connect one end of the plastic pipe to outlet of the tank, and the other end to inlet of the machine base.
3. Adjustment of operation wand: put the burnisher on the normal floor, pull up the handle adjustment lever, adjust the wand to a proper working position to ensure correct posture and arm slightly bending when operating. Then loose the handle adjustment lever, and wave the wand to check if the operation wand is locked correctly by adjusting gear.
4. Load water (cleanser): Load water or cleanser into water tank according to cleaning demand.
5. Wire connection: Connect base wire to the power coupler of wand, loose wire of wand, check to ensure the voltage identical with the rating voltage, then connect the power cable into the socket.
6. Power operation: power is controlled by left and right switch lever. For the sake of safety, the startup switch lever work jointly with the safety interlock lever, push the safety interlock lever from the middle to the bottom while pressing the switch lever. Loose the safety interlock lever after burnisher startup.
7. Direction control: After the burnisher startup,pull up or press down the wand slightly ,the burnisher will move to right or left automatically.Press down the wand will increase the hind pressure of the drive plate ,thus make burnisher move to left.Pull up wand will increase the fore pressure of the drive plate,thus make burnisher move right.
8. Water flow control:
9. Job completion:

Safety Rules and Attentions

1. Before operation, please read this manual carefully in order to ensure operating this machine correctly. If any questions please contact A-Z Chem for further information.
2. Please check to ensure the power voltage identical with the rated voltage marked on the nameplate before the connecting the power cable. Pull out the power plug while not in use and wire the power cable properly.
3. Check to ensure the power cable undamaged before using. If the power cable was damaged or the instrument fault, let a professional change or repair, to prevent unfavorable result. Never use the spare parts from other companies, otherwise A-Z Chem will not take responsibility.
4. Do not use the machine outdoors while raining in order to avoid short circuit and the electric shock accident. And keep it in dry place while not in use.
5. Make sure power plug is clear from any heavy body upon it. Plug out power before any maintenance and cleaning.
6. Before cleaning carpet, please moisten carpet with water of cleaning to lessen cleaning resistance for the machine.
7. This appliance does not intend to be operated by weak, dull or psychotic individuals unless they are under correct directions or assistance from ones with responsibility for their safety.
8. Children should be supervised strictly to ensure that they always keep away from this appliance.
9. This product is suitable for hotels, offices, and warehouses.

Warranty and support

This product carries a 6-month repair warranty, subject to assessment, correct operation and the warranty conditions below. Warranty service is coordinated through A-Z Chem and handled under the authorised warehouse warranty process.

Warranty conditions

• The machine must not be plugged into an extension cord
• Ensure that the machine has a dedicated power outlet that is not shared with any other appliances
• The machine must not get wet
• The machine must be cleaned after use to prevent hardening of residues
• The brushes must be removed and cleaned after use
• Pedals/hinges being bent/broken is regarded as abuse

Ordering, delivery and collection

Online order item - delivery or collection from A-Z Chem Montana. This product is not normally held at our Montana store. After your online order and payment are received, we will collect the item from our warehouse. You can have the product delivered, or collect it from our Montana store once we notify you that it is ready. Please wait for the ready-for-collection notification before visiting the store.

Compatibility note: Confirm the model, connection size, voltage and specification before ordering replacement parts. Contact A-Z Chem if you need assistance.
