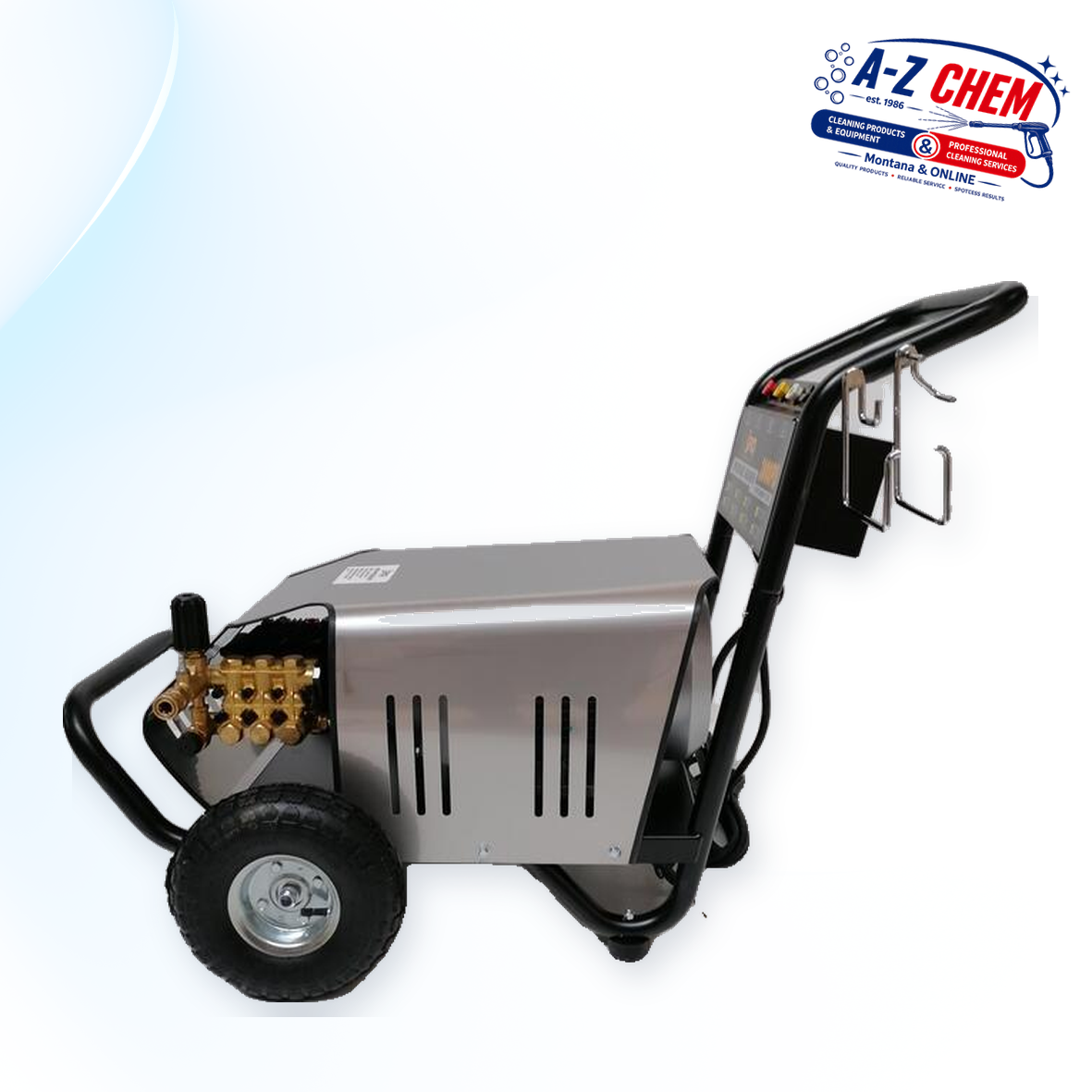

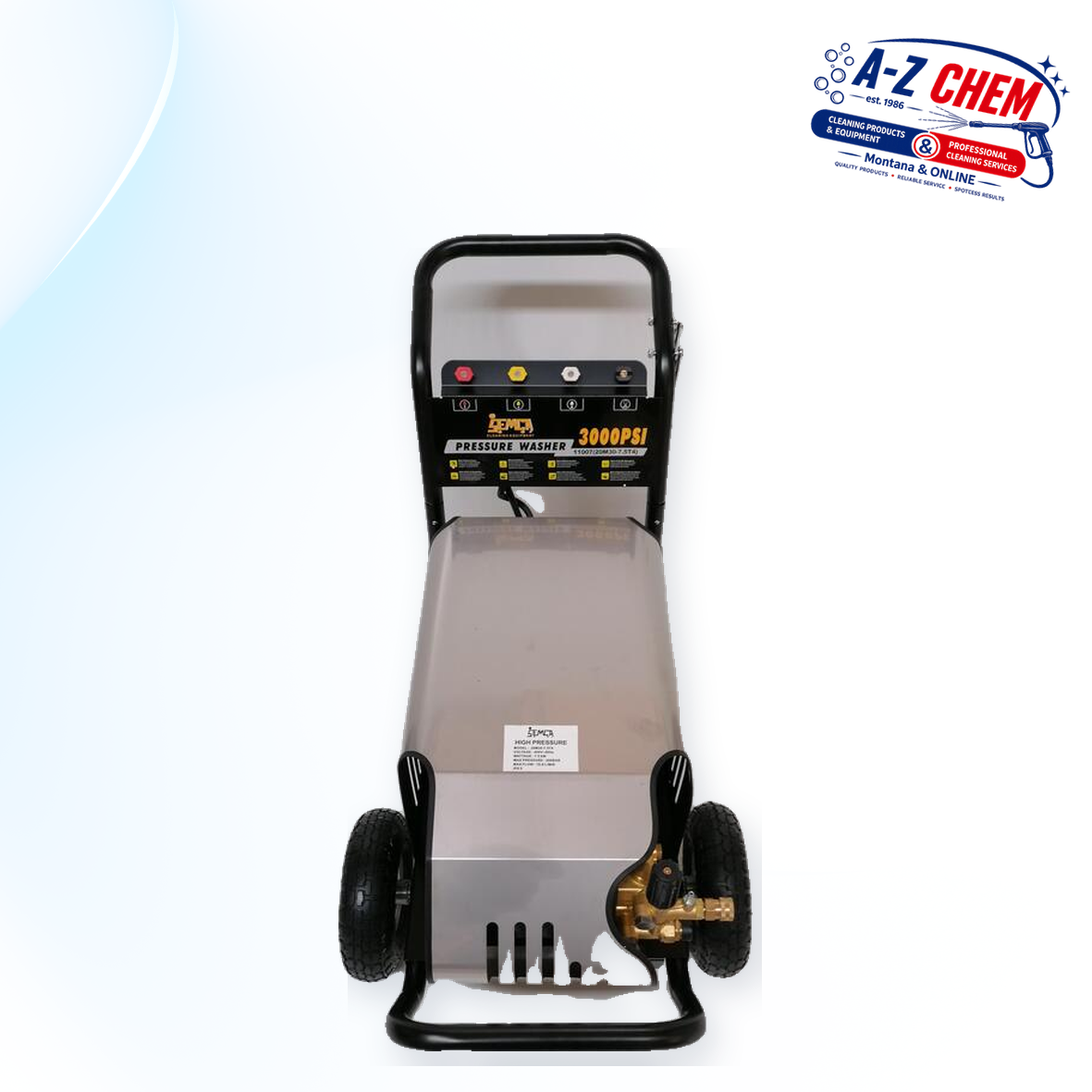

High Pressure Washer 380V 7.5kW

Warehouse item - order online for delivery, or collect from our Montana store once notified.

Product overview

The High Pressure Washer 380V 7.5kW is a professional cleaning machine selected for dependable commercial and industrial use.

Product details, use and care

A 7.5kW high-pressure washer.

Specifications:

• Power: 7.5kW
• Voltage: 380V Three phase
• Revolutions: 1450RPM
• Max. Pressure: 240 bar
• Flow: 20.7 L/min

Usage:

The machine must be switched off when not in use. If the gun is released and the pump enters its unloading state, the machine can only facilitate this for 30 seconds before the water starts overheating and ultimately damaging the pump. If any damage comes to the pump from deformation or destruction of internal components, overheating is the likely cause.

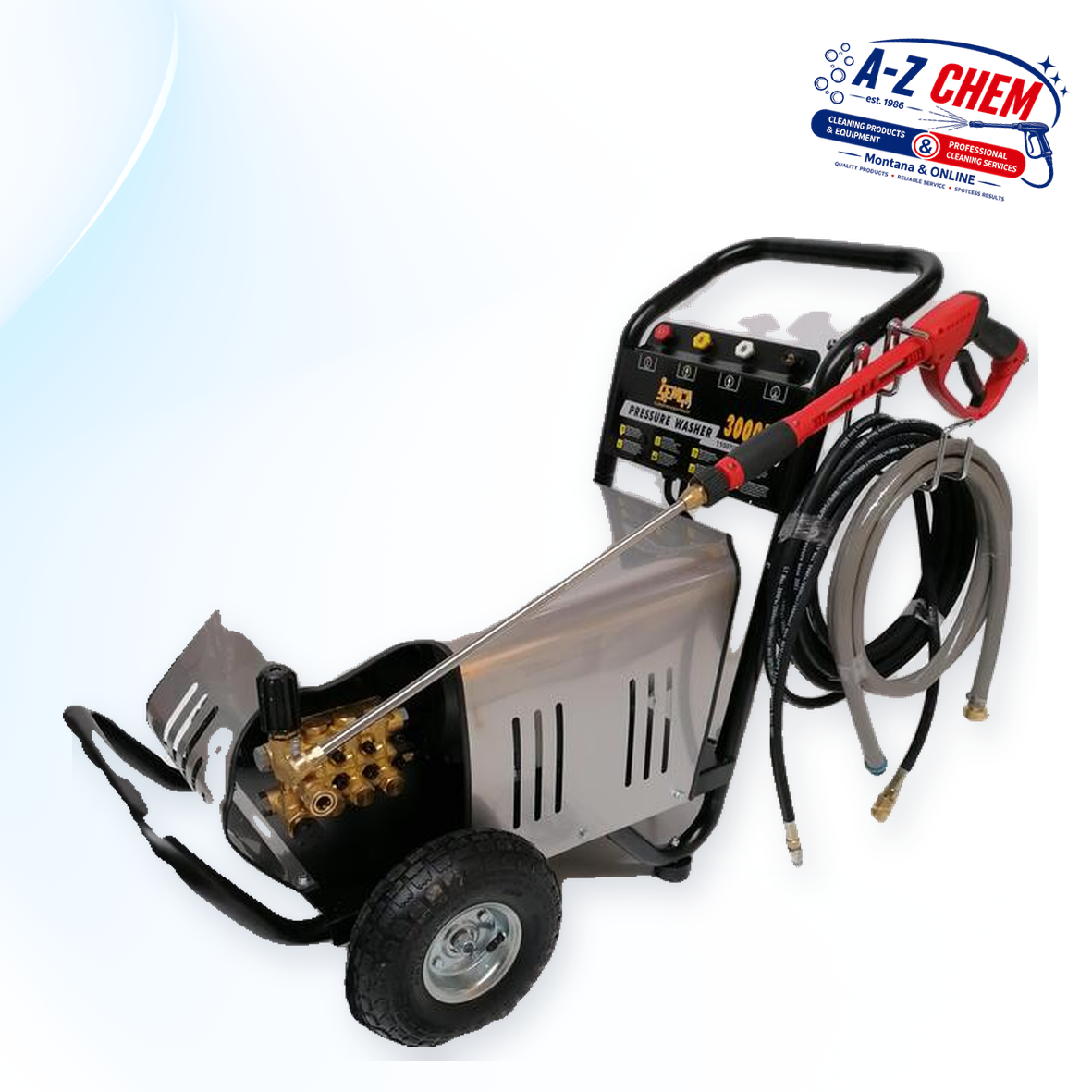

The machine comes with a Red Gun, a 7m 280bar high-pressure hose, a short hose, a low-pressure chemical injector, and the following nozzles:

• Red nozzle
• Yellow nozzle
• White nozzle
• Black nozzle

A-Z Chem stocks the parts and spares of this machine and has repair facilities for the machine.

WARNING

"MUST DO"

• All electrical conductors MUST BE PROTECTED against the water jet.
• The appliance MUST ONLY BE CONNECTED to a correct earthed power supply.
  TIP: Use of Safety Residual Current Circuit-breaker(r.c.c.b) will provide additional protection for the operator(30mA).
• The high pressure jet may cause loose particles to be propelled at high speed, therefor protective clothing and safety glasses MUST BE WORN.
• Before carrying out any work on the cleaner, DISCONNECT the plug from the electrical supply socket.
• Before pressing the trigger, GRIP the gun firmly to counteract the recoil.
• Maintenance and repair of electrical components MUST be done by a qualified staff.
• DISCHARGE residual pressure before disconnecting the high pressure hose.
• Before using the appliance, CHECK every time that the screws are fully tightened and that there are no broken or worn parts.
• Only use detergents which will not corrode the coating materials of the machine and it's parts. DO NOT USE bleach, alcohol, petrol, hydrochloric acid etc. as the solvents that are flammable and erodable.
• The appliance operates at fluid pressures and velocities high enough to penetrate human and animal flesh, which could result is amputation or serious injury. DO NOT TREAT FLUID INJECTIONS AS A SAMPLE CUT! SEE DOCTOR IMMEDIATELY!
• Only use chemicals desighed for pressure washer using mild soaps and chemicals compatible with aluminium and brass parts of the pressure washer.
• The machine uses normal temperature and the temperature for the inlet should not be used with the temperature of 0°C or under 0°C.

"MUST NOT DO"

• Do not use the appliance with inflammable or toxic liquid, or any products which are not compatible with the correct operation of the cleaner.
• Do not use the appliance within range of persons unless protective clothing are worn.
• Do not use the appliance if supply cord or important parts of the appliance are damaged, e.g. safety devices, high pressure hoses, trigger gun.
• Do not direct the water jet towards people, animals, electrical equipment or the machine itself.
• Do not use the appliance outdoors in case of rain.
• Do not allow children or unprofessional staff to use the machine.
• Do not though the plug or socket with wet hands.
• Do not use the appliance if electrical cord is damaged.
• Do not use the appliance if the high pressure hose is damaged.
• Do not jam the trigger in the operating position.
• Do not with or alter the calibration of the safety valve.
• Do not alter the original diameter of the spray nozzle.
• Do not leave the appliance unattended.
• Do not move the appliance by pulling the electrical cord.

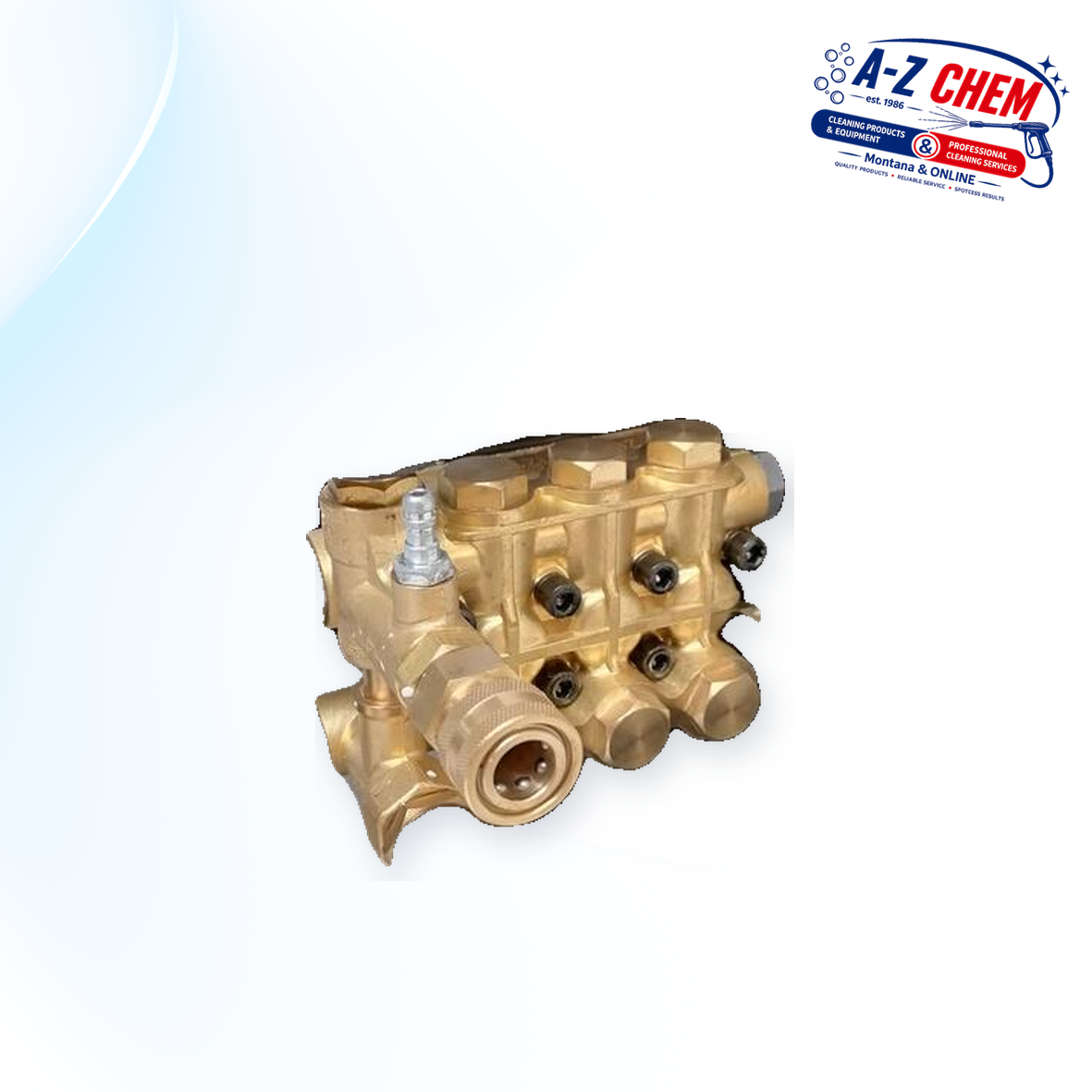

PUMP OPERATING FEATURES

Please check each part according to the packing list when opening the carton, to check whether the parts are complete and in good condition. Keep all documents and manuals.

1. CHANGE OIL INLET PLUG

The red plug on the pump is specially designed for transportation, before using the unit, please replace the red plug with the yellow plug or the brass plug in the spare parts package.

2. PRESSURE REGULATOR

The pressure setting is preset at the factory to achieve optimum pressure and cleaning. If need to lower the pressure, the following methods can be used:

1. Back away from the surface to be cleaned. The further away the user is, the less pressure is on the surface to be cleaned.
   DO NOT try to increase pump pressure, a higher pressure setting may damage the pump.
2. Change to the 40° white nozzle. This nozzle delivers a less powerful stream of water and a wider spray pattern.
3. Adjust the pressure regulator on the pump. Turn the pressure regulator knob anti-clockwise to lower the pressure. Once you have finished using your pressure washer, return the pressure regulator to it's original position by turning it clockwise.
   DO NOT try to turn pressure regulator knob past the build-in stop line otherwise damage to the pump may be resulted.
3. TYPE OF NOZZLE

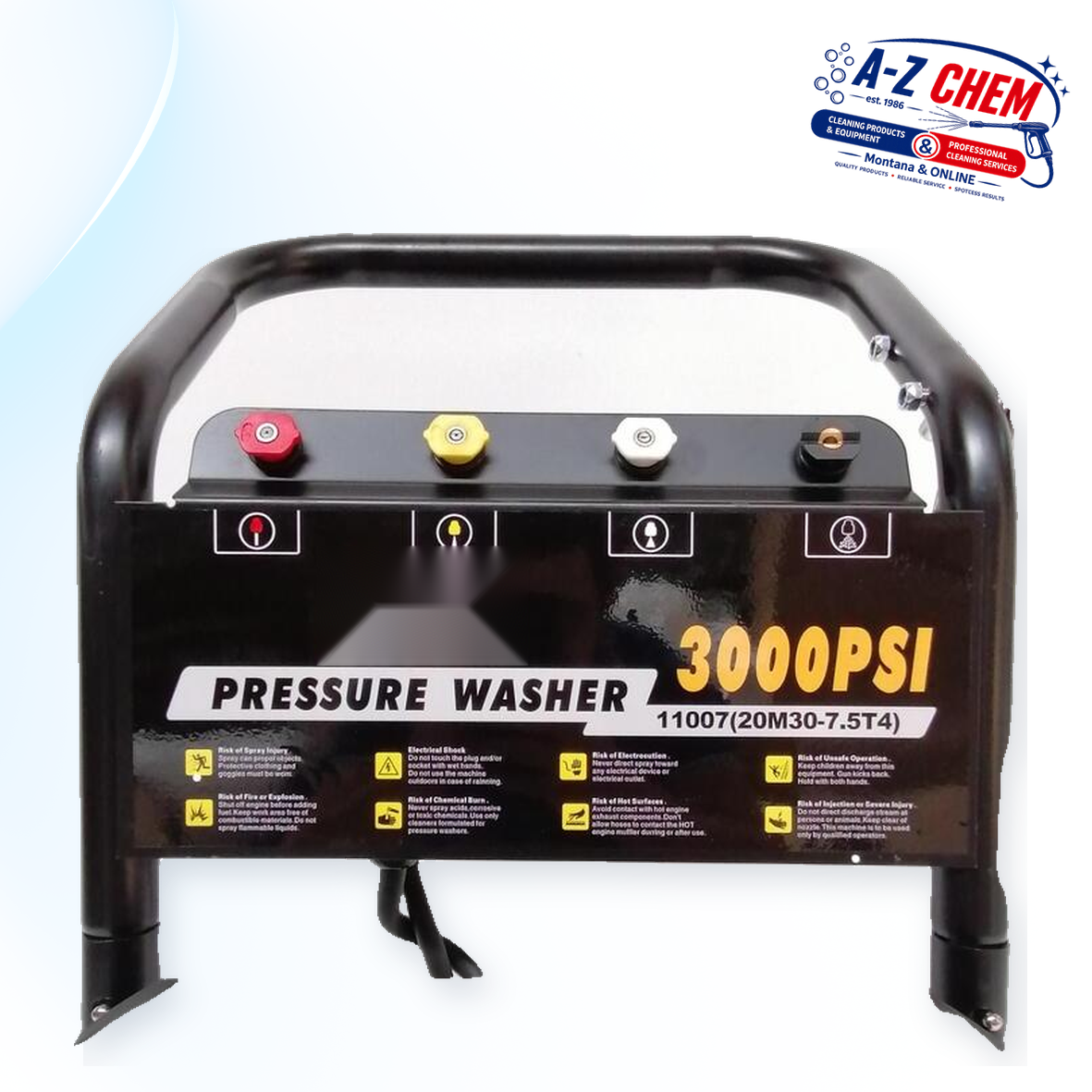

Your unit is equipped with four spray nozzles. Each nozzle is colour coded, and delivers a specific spray pattern for a particular cleaning purpose.

• Red: 0° nozzle
• Yellow: 15° nozzle
• White: 40° nozzle
• Black: Chemical nozzle

CAUTION
This high pressure spray from your unit is capable of causing damage to surfaces suck as wood, glass, automobile paint, auto striping and trim, and delicate objects such as flowers and shrubs. Before spraying, check the item to be cleaned to assure yourself that it is strong enough to resist damage from the force of the spray.
4. CHANGING NOZZLES

DO NOT attempt to change the nozzle while the unit is running.
Turn the engine or gun OFF before changing the nozzle.

1. Pull quick-release back and insert nozzle.
2. Release quick-release and twist nozzle to make sure it is secure in quick-release socket.
   Risk of injury. Ensure nozzle is completely inserted in quick-release socket before turning on gun trigger.

CONNECTION TO ELECTRICAL SUPPLY

1. Make sure that the mains voltage is the same as shown on the identification label on the identification label on the machine.
2. WARNING Make sure that the plug complies with your local regulations, and it is provided with ground connection (earth)
3. WARNING The power outlet must be protected by a residual circuit breaker with a sensitivity of less than 30mA.
4. WARNING Do not connect other appliances to the same outlet.
5. WARNING Insert the plug after checking the switch joint the machine in the OFF position.

STARTING THE MACHINE

WARNING In case of power failure, turn the unit OFF for safety reasons.

• Supply water to the machine, then press the gun trigger
• Switch on the unit.
• Hold the gun in the open position for a few seconds to drain the air from the hose.
• At this stage, adjust the machine pressure to your pressure requirement and you are ready to enjoy your work.
• During washing, it is better not to exceed the recommended pressure.
• During washing, the spray head should not be far away from the dirty surface.
  WARNING Do not use the machine when people or animals are in range of the jet.
  Stop the gun after ending the washing, then switch the engine off. Do not let the unit run with the gun switched off for more than 2 minutes. The unloading valve is still moving agter stopping the gun, the water will flow in circle in the pump, which will make the water hot and damage the seal ring, ceramics or other accessories if the machine is kept running.
• During the operation, it is normal if there is a little water leaks out from the pump, which will not effect the use of the machine.
• SAFETY VALVE: The safety valve also functions as a pressure limiting valve. When the gun trigger is released, the safety valve opens and the water recirculate through the pump inlet.

STOPPING THE MACHINE

1. When not in use, switch the machine off.
2. Hold the gun in the open position for a few seconds to drain water from the hose.

WARNINGHigh pressure water jets are potentially dangerous is used incorrectly. In particular, DO NOT direct the water jet towards people or animals, electrical equipment or the unit itself.

APPLICATION FIELD

• To maintain and wash the deversified vehicles, project machinery, architecture and agricultural machinery.
• To maintain and wash the army vehicles, tanks, naval vesssels, planes, and other military machinery.
• Wash and disinfect the diver sited harbour containers.
• Wash sanitation recovery and disinfection at stock farm, breeding house and slaughterhouse.
• Daily wash of buildings glass and the outside walls.
• Wash and disinfect the enviroment of townsfolk square, carnie, hospitals, hotels, restaurants and the courtyard.

PUMP OPERATING FEATURES

• The level of the oil must be checked periodically.
• It is most important that the oil is changed after the first 50 hours of work and successively every 100 hous.
• In any case we suggest to change the oil at least once a year.
• OIL TYPE: SAE 15W-40 or equivalent motor oil.
• How to change pump oil:
  Drain the old pump il completely through the oil outlet plug.
  Install the oil outlet plug again and pour the clean oil in the crankcase, the oil level should be slightly over the center line of the oil mirror.

TROUBLE SHOOTING

FOR QUALIFIED PERSONNEL ONLY

Fault:Pump running normally but pressure does not achieve rated values.
Cause:

• Pump sucking air
• Valve worn or dirty
• Worn Out Unloader valve
• Worn out piston seals
• Dirty filter

Solution:

• Check that hoses and fittings are air tight
• Check, clean and replace
• Check and replace
• Check and replace
• Check and replace

Fault:Fluctuating pressure
Cause:

• Valves worn, dirty or stuck
• Pump sucking air
• Damaged or dirty Check Valves
• Dirty filter

Solution:

• Check and replace
• Check that hoses and fittings are air tight
• Check and replace
• Check and clean

Fault:Pressure drops after period of normal use.
Cause:

• Worn Nozzle
• Check Valve is worn, dirty or stuck
• Worn Out Unloader valve
• Worn out piston seals
• Dirty filter

Solution:

• Check and replace
• Check, clean and replace
• Check, clean and replace
• Check and replace
• Check and clean

Fault:Pump is noisy.
Cause:

• Pump sucking air
• Valve worn, dirty or stuck
• Worn Out bearings
• Water Top hot
• Dirty filter

Solution:

• Check that hoses and fittings are air tight
• Check, clean and replace
• Check and replace if necessary
• Reduce Temperature
• Check and clean

Fault:Water in oil.
Cause:

• High humidity in air
• Piston seal or oil seal worn out

Solution:

• Check and change oil twice as often
• Check and replace

Fault:Water dripping from under the pump.
Cause:

• Piston seals damaged or worn out
• The O-ring of piston guide or retainer worn

Solution:

• Check and Replace
• Check and Replace

Fault:Oil leaking.
Cause:

• Oil seal worn out

Solution:

• Check and Replace

Fault:The motor does not start when switched on.
Cause:

• The plug not well connected or lack of power supply

Solution:

• Check plug, cable and switch

Fault:When switching the unit on, the motor turns but does not run.
Cause:

• The mains voltage is insufficient, lower than the minimum requirement
• The pump is stuck or frozen
• Incorrect extension cable

Solution:

• Check that the main power supply is adequate
• Follow the correct precautions

Fault:The motor stops running.
Cause:

• Tripped internal overload due to overheating

Solution:

• Check that the main voltage corresponds to the specifications
• Wait a few minutes before turning on the unit again

Warranty and support

This product carries a 6-month repair warranty, subject to assessment, correct operation and the warranty conditions below. Warranty service is coordinated through A-Z Chem and handled under the authorised warehouse warranty process.

Warranty conditions

• The machine must be used with the A-Z Chem-approved Electrical Box as it is specifically designed to electrically protect the machine
• Ensure that the A-Z Chem-approved High-Pressure Machine has a dedicated power supply that is not shared with any other appliances
• Do not use an extension cable to power the machine
• The voltage may not drop below 215V when under load
• The aforementioned must be tested when the machine is physically spraying
• Warranty will not be adhered to in the case of burned windings unless the motor bearings or motor rotor is faulty
• Ensure that the machine does not get wet
• Ensure that all nuts are tightly screwed into the connecting terminals
• Make sure the motor is free of vibrations and is properly balanced
• The machine must spray water at least every 30 seconds to prevent the internal components of the pump to be damaged
• The gun must not be pressed in rapid succession as the machine entering the unloading state continuously can cause enhanced wear and tear
• Only 15w40 oil must be used with the pump and appropriate oil levels must be maintained

Ordering, delivery and collection

Online order item - delivery or collection from A-Z Chem Montana. This product is not normally held at our Montana store. After your online order and payment are received, we will collect the item from our warehouse. You can have the product delivered, or collect it from our Montana store once we notify you that it is ready. Please wait for the ready-for-collection notification before visiting the store.

Compatibility note: Confirm the model, connection size, voltage and specification before ordering replacement parts. Contact A-Z Chem if you need assistance.
